Orange Smooth Polyurethane Round Belt PU Round Belt SGS ISO9001: 2008 Certified Diameter 2-20mm
| 最小注文数量 | 1,000 |
|---|---|
| 価格 | 0.5 |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル番号 | DIA 2mm-20mm | タイプ | PUの円形ベルト |
|---|---|---|---|
| 材料 | pu | 内部素材 | pu |
| 表面 | 滑りか 粗い | 抗張力 | 55N/mm2 |
| 直径 | 2〜20 mm | 硬度 | 85 a〜90 a |
| 率の伸張 | 1.5-3% | 最小半径 | 20～160mm |
| 最大引張 | 0.3-31.3 kg | ロールの長さ | 30-400 m |
| 耐摩耗性 | 並外れた | 涙の強さ | 高い |
| 耐衝撃性 | 高い | ||
| ハイライト | SGS ISO9001: 2008 Certified Polyurethane Round Belt,Diameter 2-20mm PU Round Belt,Orange Polyurethane Round Belt |
||
製品の説明

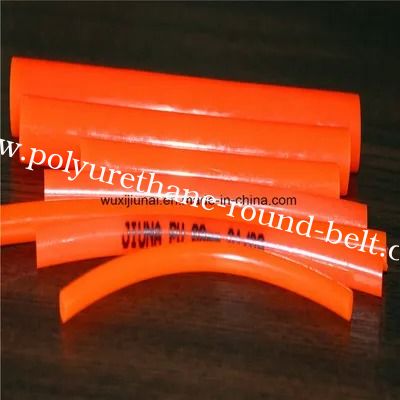

Orange Smooth Polyurethane Round Belt
Our premium Polyurethane round belts are designed for transmission applications in industrial machinery and product conveyance systems. These belts feature a durable poly cord construction and are available with both smooth and rough surfaces to suit various operational requirements.
Product Features
- Outstanding abrasion resistance
- High tensile and tear strength
- Resistance to oils, fuels, and oxygen
- Excellent weatherability and high impact resistance
- Low compression set for long-term performance
- Available with polyester, nylon, or fiber reinforcement
- Can be welded to form O-rings
Applications
Ideal for use in:
- Newspaper conveying systems
- Packaging machinery
- Ceramic and stoneware processing plants
- Floor and roof tile conveyance
- Wood working machinery
- Textile machines
- Paper industry equipment
- Food grading and processing machines
Technical Specifications
| Items NO. Φ | Least Radius of Gyration | Stretching Rate | Maximum Tensile Rate | Hardness | Length of Roll | ||
|---|---|---|---|---|---|---|---|
| DIA(mm) | In | mm | % | Kg | Lbs | Shore(A) | Roll(m) |
| 2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
| 2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
| 3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
| 5mm | 1.57 | 40 | 1.5-3% | 2 | 4.3 | 90 | 100 |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7 | 90 | 100 |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9 | 90 | 100 |
| 8mm | 2.56 | 65 | 1.5-3% | 5 | 11 | 90 | 100 |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15 | 90 | 50 |
| 10mm | 3.94 | 100 | 1.5-3% | 7.7 | 17 | 90 | 50 |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27 | 90 | 30 |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39 | 90 | 30 |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56 | 90 | 30 |
| 20mm | 6.3 | 160 | 1.5-3% | 31.3 | 69 | 90 | 30 |
Note: We also supply connecting tools and accessories for polyurethane belts, including clamps, electric irons, and knives. Connection methods include hot press welding and overlap welding.
