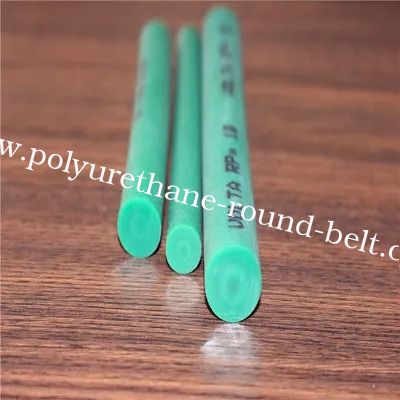

Polyurethane Round Belt PU Round Belt with Diameter 2-20mm Shore A 90 and Acid Alkali Resistance for Drive Transmission
| 最小注文数量 | 1,000 |
|---|---|
| 価格 | 0.5 |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル番号 | DIA 2mm-20mm | タイプ | PUの円形ベルト |
|---|---|---|---|
| 材料 | pu | 内部素材 | pu |
| 表面 | 滑りか 粗い | 抗張力 | 55N/mm2 |
| 直径範囲 | 2〜20 mm | 硬度 | 海岸（a）85〜90 |
| 率の伸張 | 1.5-3% | ロールの長さ | 30m〜400m |
| 最小半径 | 20mm〜160mm | 最大張力 | 0.3kg〜31.3kg |
| 油抵抗性 | はい | 酸耐性 | はい |
| 耐熱性 | はい | ||
| ハイライト | Diameter 2-20mm Polyurethane Round Belt,Shore A 90 PU Round Belt,Acid Alkali Resistant Polyurethane V Belt |
||
製品の説明
Driving Polyurethane Round Belt Supplier
We provide a comprehensive range of Polyester and Polyurethane Round belts designed for industrial transmission applications. Our belts are engineered for transporting various products across multiple industries, from transport and conveyor systems to glass and tile handling.
Product Features
- Outstanding abrasion resistance
- High tensile and tear strength
- Resistance to oils, fuels, and oxygen
- Excellent weatherability and high impact resistance
- Low compression set
- Available with smooth or rough surfaces
- Reinforced with polyester, nylon, or fibers
- Can be welded into O-rings
Available Accessories
We supply complete connecting tools and accessories including clamps, electric irons, and knives. Connection methods include hotpress welding and overlap welding.
Applications
- Newspaper conveying systems
- Packing machines
- Ceramic and stoneware processing plants
- Floor and roof tiles conveying
- Wood working machinery
- Textile machines
- Paper industry machines
- Food grading and processing machines
Technical Specifications
| Items NO. Φ | Least Radius of Gyration | Stretching Rate | Maximum Tensile Rate | Hardness | Length of Roll | |
|---|---|---|---|---|---|---|
| DIA(mm) | In | mm | % | Kg | Lbs | Shore(A) | Roll(m) |
| 2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
| 2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
| 3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
| 5mm | 1.57 | 40 | 1.5-3% | 2 | 4.3 | 90 | 100 |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7 | 90 | 100 |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9 | 90 | 100 |
| 8mm | 2.56 | 65 | 1.5-3% | 5 | 11 | 90 | 100 |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15 | 90 | 50 |
| 10mm | 3.94 | 100 | 1.5-3% | 7.7 | 17 | 90 | 50 |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27 | 90 | 30 |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39 | 90 | 30 |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56 | 90 | 30 |
| 20mm | 6.3 | 160 | 1.5-3% | 31.3 | 69 | 90 | 30 |
The elastic and flexible PU material (85A~90A) is particularly suitable for lead-in conveyors and vertical shafts.
