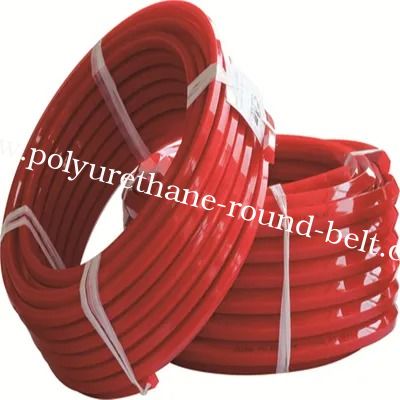

Customizable Size Polyurethane V Belt for Drive Transmission in Furniture Industry Applications
| 最小注文数量 | 1,000 |
|---|---|
| 価格 | 1.2 |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル番号 | Vベルト | 硬度 | 85A-95A |
|---|---|---|---|
| サイズ | カスタマイズ | 仕様 | A,B,C |
| 幅a | 13mm | 高さa | 17mm |
| 硬度a | 90a | 長さa | 30m/roll |
| 幅b | 17mm | 高さb | 22mm |
| 硬度b | 90a | 長さb | 30m/roll |
| 幅c | 22mm | 高さc | 28mm |
| 硬度c | 90a | ||
| ハイライト | Customizable Size Polyurethane V Belt,Drive Transmission PU V Belt,Furniture Industry Application Transmission V Belt |
||
製品の説明
Transmission Polyurethane V Belt Supplier
Ceramic Industrial PU Ridge Top belt Polyurethane V Belt B-17/C-22 type for transmission.
Ridge Top V-Belt Features:
- Very soft belt material with high elasticity
- Excellent adhesion properties
- Available with smooth and rough surface options
- Maintains flexibility at low temperatures
- Reinforcement available on request
- Standard color: orange
Top Ridge Belting Applications:
- Furniture manufacturing industry
- Printing line operations
- Bottle and can return systems with refundable deposits
- Transport systems with vertical shaft drives
- Guiding profiles for linear track welding on flat and timing belts
- Roller conveyor systems
Product Specifications:
| Type | X (mm) | H (mm) | Hardness (A) | M/rolls | Reinforced |
|---|---|---|---|---|---|
| A | 13 | 17 | 90 | 30 | · |
| B | 17 | 22 | 90 | 30 | · |
| C | 22 | 28 | 90 | 30 | · |
Product Overview:
Ridge top V-belts are primarily used in the ceramic and tile industry. Our standard product range includes 2-component Ridge top V-belts that combine superior product adhesion with high tensile strength characteristics. These belts can also be reinforced with polyester for enhanced durability.
