SGS ISO9001: 2008 Certified Polyurethane V Belt with Drive Transmission and 30M/Rolls
| 最小注文数量 | 1,000 |
|---|---|
| 価格 | 1.2 |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 硬度 | 85A-95A | サイズ | カスタマイズ |
|---|---|---|---|
| 仕様 | A,B,C | 幅a | 13mm |
| 高さa | 17mm | 硬度a | 90a |
| 長さa | 30m/roll | 幅b | 17mm |
| 高さb | 22mm | 硬度b | 90a |
| 長さb | 30m/roll | 幅c | 22mm |
| 高さc | 28mm | 硬度c | 90a |
| 長さc | 30m/roll | ||
| ハイライト | SGS ISO9001: 2008 Certified Polyurethane V Belt,Drive Transmission PU V Belt,30M/Rolls Ridge Top V-Belt |
||
製品の説明

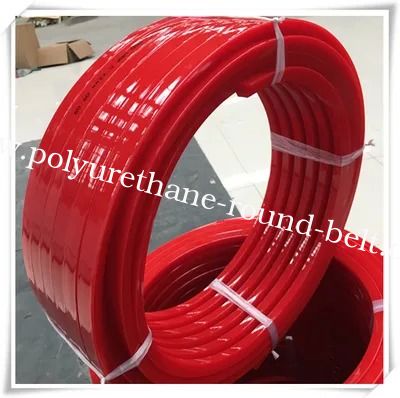

Red PU Extruded Belt
Ceramic Industrial PU Ridge Top belt Polyurethane V Belt B-17/C-22 type for transmission.
Ridge Top V-Belt Features
- Very soft belt material with high elasticity
- Excellent adhesion properties
- Available with smooth and rough surface options
- Maintains flexibility at low temperatures
- Optional reinforcement available
- Standard color: orange
Applications
- Furniture manufacturing industry
- Printing line operations
- Bottle and can return systems with deposit refund
- Vertical shaft drive transport systems
- Linear track guiding profiles for welding applications
- Roller conveyor systems
Technical Specifications
| Type | X (mm) | H (mm) | Hardness (A) | M/rolls | Reinforced |
|---|---|---|---|---|---|
| A | 13 | 17 | 90 | 30 | · |
| B | 17 | 22 | 90 | 30 | · |
| C | 22 | 28 | 90 | 30 | · |
Product Overview
Ridge top V-belts are primarily used in the ceramic and tile industry. Our standard product range includes 2-component Ridge top V-belts that combine superior adhesion with high tensile strength. These belts can be reinforced with polyester for enhanced durability.
